How to Install and Configure SMTP Server on Windows

Introduction

SMTP (Simple Mail Transfer Protocol) is a service that enables email exchange on the Internet and within a local network. To achieve that, SMTP interacts with the Mail Transfer Agent (MTA) and ensures the messages reach the intended recipients.

Mail servers and other message transfer agents usually use SMTP to send and receive email messages.

In this tutorial, you will learn to install and configure the SMTP server on Windows.

How to install and configure the SMTP server on Windows - a tutorial.

Prerequisites

  • A Windows Server operating system.
  • A user account with administrator privileges.

Note: Client operating systems like Windows 11, Windows 10, and Windows 8, do not have SMTP Server capabilities. Windows Server operating systems provide an SMTP server as part of the Internet Information Services (IIS). The client operating systems only provide the SMTP email client, which is not an SMTP server.

Install SMTP on Windows

SMTP installation is a straightforward process on Windows Server operating systems. Use the Server Manager management console and follow the steps below to install SMTP.

Step 1: Add Roles and Features in Server Manager Dashboard

Open the Server Manager management console and select Dashboard in the left pane.

Opening the server manager dashboard in Windows Server.

From the Dashboard, select the Add roles and features option to start the wizard and install the SMTP server.

The Before You Begin screen appears, stating that the prerequisites for adding a role are:

  • Having a strong password on the Administrator account.
  • Configured network settings on the server.
  • That you have installed the latest security updates.

If all the prerequisites are met, click Next to continue the installation.

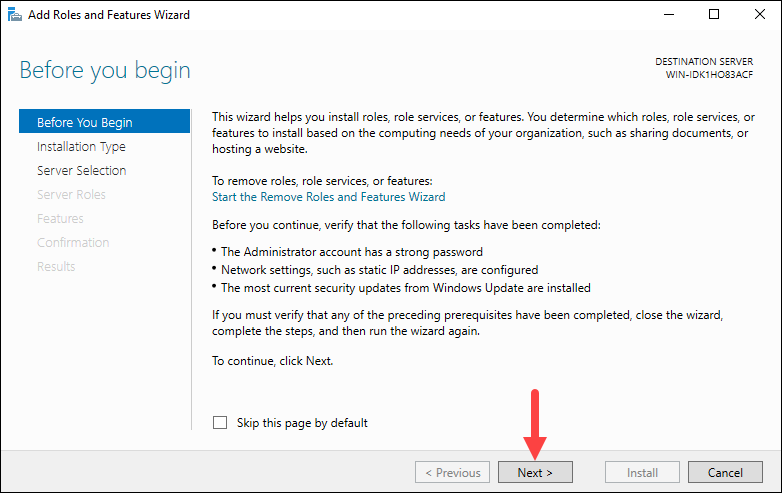

The welcome screen of the Add roles and features wizard.

Step 2: Select Installation Type

In the Installation type window, select Role-based or feature-based installation. Click Next to continue.

Selecting the installation type for SMTP server.

Step 3: Select Destination Server

Choose the Select a server from the server pool option and pick the desired server from the Server Pool to set the destination server. The Server Pool lists the servers you have added using the Add Server option in Server Manager. By default, the local server is selected.

Click Next to move on to the next step.

Choosing the destination server for SMTP installation.

Step 4: Select Server Role

The Select server roles screen allows you to select which features and roles to install. Keep the default selection and click Next.

Selecting which server roles to install.

Step 5: Select Features

The next step is to select which features to install. Scroll through the list to find and select SMTP Server. Click Next to proceed.

Selecting the SMTP server feature for installation.

Step 6: Install Missing Features

If the Remote Server Administration Tools and Web Server roles have not been previously installed, the wizard prompts you to install them. Check the Include management tools option and click Add Features to install them:

Installing missing features for SMTP.

Install Web Server Role

The wizard displays an information screen about the Web Server Role (IIS). Click Next to install the role.

Installing the Web Server role on Windows Server OS.

Install Role Services

Check all the services you want to install for the Web Server role. The default options are preselected.

Selecting which services to install along the Web server role.

Click Next to proceed to the final step when you finish selecting the services.

Step 7: Confirm Installation

The wizard displays a confirmation window with a summary of all the roles, services, and features about to be installed. Make sure that the Restart the destination server automatically if required option is checked and click Install to finish the installation.

Confirming the installation of SMTP and other required features.

When the installation completes, click Close to exit the installation wizard.

Configure SMTP on Windows

Configure the SMTP server using the Internet Information Services (IIS) Manager 6.0. Follow the steps in the chapters below.

Step 1: Open IIS 6.0

Open the IIS Manager 6.0 from the Server Manager dashboard.

Select the Tools option, and locate Internet Information Services (IIS) 6.0 Manager from the dropdown menu:

Opening the Internet Information Services 6.0 manager.

Step 2: Configure SMTP Virtual Server

In IIS Manager 6.0, expand the computer name and right-click [SMTP Virtual Server #1].

Select Properties from the dropdown menu.

Configuring the properties of SMTP virtual server.

Step 3: Configure Relay

The relay options allow you to relay emails through the SMTP virtual server.

Configure Server Access

1. In [SMTP Virtual Server #1] properties, click the Access tab and select the Relay button:

Setting the relay settings for SMTP.

2. Select the Add… option to set which computer is allowed to relay emails through the SMTP server.

Adding a computer to SMTP relay settings.

Select the Single Computer option and enter 127.0.0.1 to allow the localhost to relay emails through the SMTP server. You can also specify a group of computers using the Group of computers option.

Click OK to confirm the changes.

Entering the localhost IP address to relay settings.

Step 4: Configure Security Options

The Delivery tab of [SMTP Virtual Server #1] properties contains different settings related to the intervals of retrying to send outbound emails after a failed delivery, and different security options.

To configure the security options, click Outbound Security.

Configuring SMTP security options.

The pop-up window allows you to choose one of four options for securing your SMTP server:

  • Anonymous access. Disables SMTP server authentication since it doesn’t require an account name or password.
  • Basic authentication. Used when sending emails to a personal or exchange account. This option passes the account name and password as clear text, so make sure to use TLS encryption if you select this option.
  • Integrated Windows Authentication. Uses the Windows domain account name and password for authentication.
  • TLS encryption. Use TLS to secure the connection. This option requires you to install a valid SSL certificate on the server.
Selecting a security type for SMTP.

Note: Test core SMTP functionality with a personal e-mail or Exchange account by selecting Anonymous access. SMTP uses the AUTH command with Basic authentication, which can cause some e-mail providers to fail.

Step 5: Restart SMTP Server

Restart the SMTP Server to apply the changes. Right-click [SMTP Virtual Server #1], select Stop, and then select Start.

Restarting the SMTP server in Windows.

Test SMTP Server

Test the SMTP server configuration by sending an email message using the SMTP server. One of the ways to do that is to use telnet. Follow the steps below:

1. Press the Windows key and search for PowerShell.

2. Run the PowerShell app as Administrator.

3. Run the following command:

telnet localhost 25

4. Start the communication with the server by running:

EHLO server

5. Enter the email address you will use to send the email. The syntax is:

MAIL FROM: [[email protected]]

6. Enter the recipient email address. The syntax is:

RCPT TO: [[email protected]]

7. Inform the SMTP Server you are ready to send the message by entering:

DATA

8. Enter the email subject:

Subject: Test Message

9. Press Enter twice to move on to the email body. Type in the message body and press Enter to finish.

10. Send the email by entering a period (.) and pressing Enter.

Testing the SMTP configuration using Telnet.

Check the recipient’s inbox to see if the email was delivered. If not, the message may still be in the SMTP Queue directory (C:inetpubmailrootQueue).

Conclusion

This tutorial showed how to install and configure the SMTP server on Windows Server operating systems. An SMTP server allows you to exchange emails using the MTA, making it a great solution when you want to set up your own mail server.

Next, learn how to set up Postfix to use an external SMTP server, or learn to use the mail command in Linux.
